LS Series Line Array Speaker

LS-208SUB

Single 18inch subwoofer
Power 500W RMS
Sensitivity 101dB/1W/1M
Cabinet 18mm birch plywood
Product description: It is a single 18inch subwoofer matching with LS-208 line array speakers
INQUIRY

Badoo Sound LS-208SUB is a 18inch subwoofer speaker, designed to match with LS-208 line array speaker. LS-208SUB combine with LS-208 to make a 3way line array sytem through accurate flyware, in large live show where requires sub-low frequency.

LS-208SUB uses a 18inch woofer speaker with 4inch voice coil, built in a cabinet with reflex holes at two sides. There is multi reinforcement plate inside the cabinet to reduce resonace, so to get powerful low frequency. The cabinet is made of birch plywood, with hard and freindly environmental painting. With smart design flyware, it is convenient for installation.

Specification

Model	LS-208SUB
Type	Single 18" Subwoofer, flying model
Drivers	1x18inch speaker, 220mm magnet, 4inch voice coil
Frequency Range	35Hz-300Hz(-3dB)
Power handling capacity	500W RMS, 2000W Peak
Sensitivity	101dB/1W/1M
MaximumSPL	128dB Continue, 134dB Peak
Rated lmpedance	8 ohm
Construction	18mm birch plywood box
	Aluminum alloy hoisting; black plastic painting
	water/dust proof treating;
Connectors	Neutrik NL4 1+ 1-

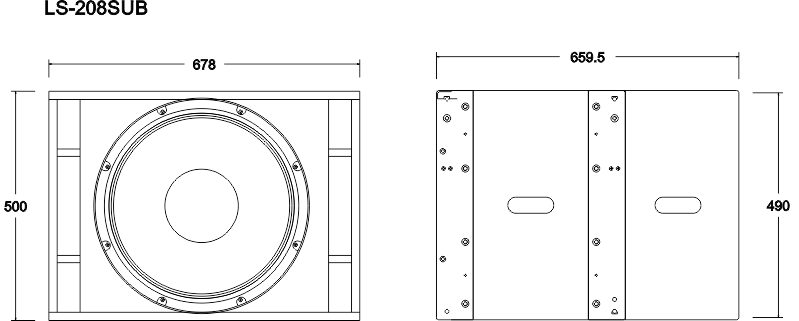

Dimensions	678 x 500 x 660mm
Net Weight	43Kg
