Micphone

U-6388

U-6388 wireless micphone

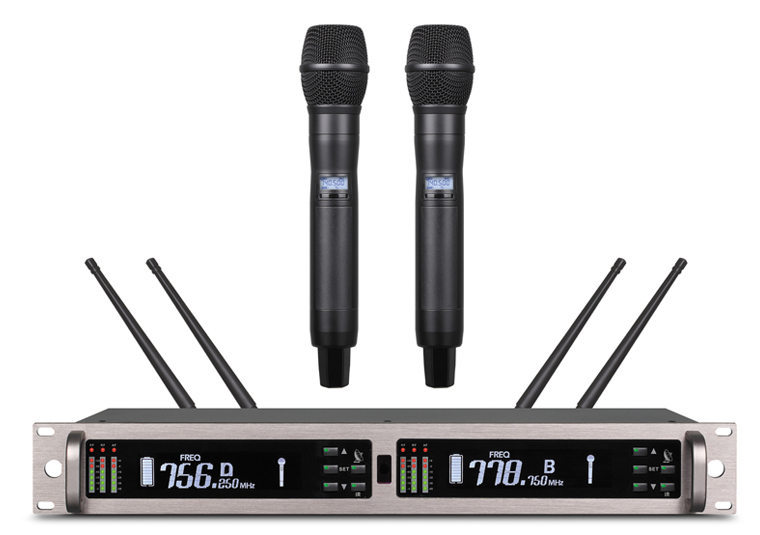

Product description: U-6388 True diversity wireless microphone
INQUIRY

True diversity wireless microphone

System Index:

1. Frequency range: UHF 520-930MHz

2. Modulation: Broadband FM

3. Adjustable range: 50MHz

4. Number of channels: 2x100

5. Channel spacing: 250KHz

6. Frequency stability: ± 0.005% or less

7. Dynamic range: 100dB

8. The biggest deviation: ± 45KHz

9. Audio Response: 80Hz-18KHz (± 3dB)

10. Integrated signal to noise ratio:> 105dB

11. Comprehensive distortion: ≤ 0.5%

12. Operating temperature: -10 ℃ ~ 50 ℃

Receiver specifications:

1. Receiver mode: the second frequency superheterodyne

2. IF frequency: the first IF: 110MHz, the second IF 10.7MHz

3. Wireless interface: BNC / 50

4. Sensitivity: 12dBμV (80dBS / N)

5. Sensitivity range: 12-32dBμV

6.Spurious suppression: ≥ 75dB

7. Maximum output level: + 10dBV

Transmitter Specifications:

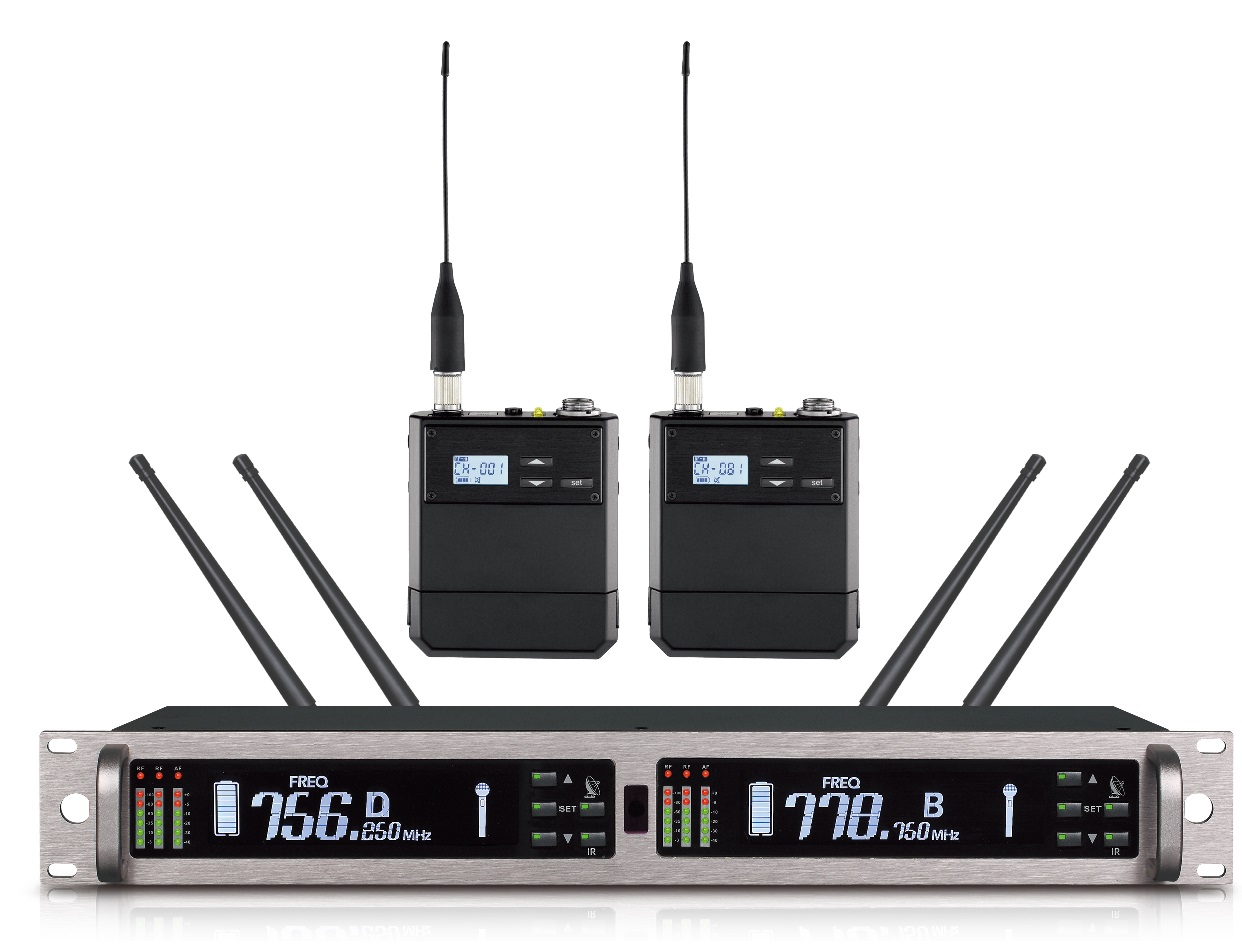

1. Antenna program: Pocket transmitter with a 1/4-wavelength whip antenna, hand-held microphone built-in spiral antenna

2. Output power: high frequency 30Mw, low frequency 3Mw

3. Spurious suppression: -60dB

4. Power supply: two AA DC 1.5V battery 5. Operating time: more than 10 hours at 30mW, more than 15 hours at 3mW
