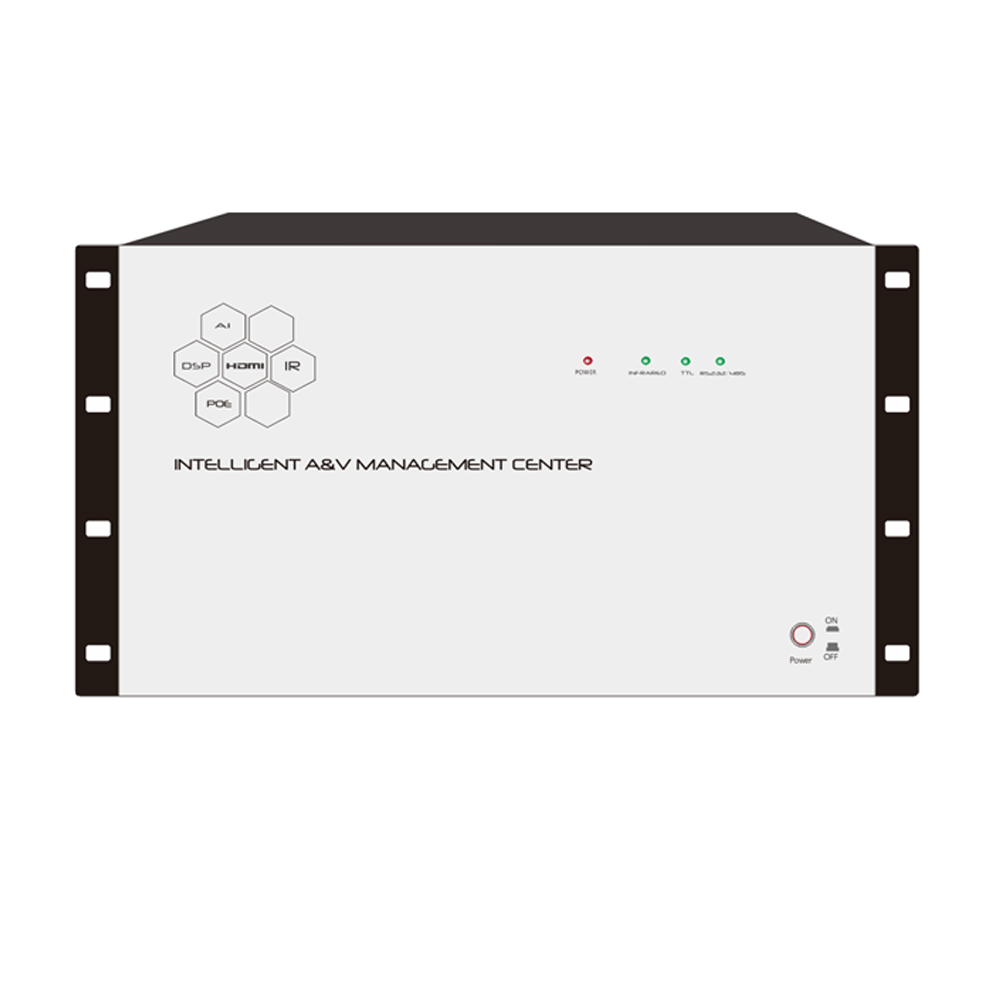

Audio and Video Management Center - copy

Product parameters:

Switch

Support 6-port POE switch and 100M data


8 Serial port central control host

1. The central control interface is designed with RJ45 mesh head, and the network cable can be made through the mesh clamp, which greatly facilitates the construction difficulty of the project.

2. Support TCP/UDP/MQTT, TTL, IR, RS232, RS485 protocols.

3. Support network client and server devices.

4. Support two-way relay short circuit output.

5. The data flow indicator can be used to observe the data transmission visually.

6. Support tablet, mobile phone and computer management system

Technical parameters:

Support 100M Ethernet TCP/UDP/MQTT network communication protocol

Support TTL control

Support RS232/RS485 control

Support infrared control (8 channels can be expanded by adding an expansion box), and 8 channels of short circuit signal output control.

Support two-way dry contact control

The panel has 4 status indicators,

8 dual relay Phoenix terminal outputs

Support wall panel control

Support mobile phone control

Support tablet control



8-channel audio matrix

8 analog inputs and 8 analog outputs. (Card is optional)

24bit fixed/floating point DSP 300MHz, 96K sampling frequency, 24bit AD/DA conversion.

21 scenes can be saved, 12dB ／ 18dB ／ 24dB ／ 48dB slope is supported, and 180 is corresponding.

It supports microphone and line input, with adjustable microphone input sensitivity and 48V phantom power supply.

The input processor part includes high cut, low cut, parameter equalization, gain, noise gate, mute, phase, volume grouping adjustment and other processing functions.

The output processing part includes processing functions such as parameter equalization, gain, mute, compression limiting, phase, delay, volume grouping and adjustment.

The input 31 segments of PEQ are adjustable, and the output 10 segments of PEQ are adjustable. The gain (Gaina) level range is+- 18dB, and the Q value is 0.4-128. Each segment supports bypass.

The gain, broadband and frequency of all channel parameter equalization can be continuously adjusted, and the type can be selected from three modes: parameter equalization, high and low pass filtering, and peak/low shelf/high shelf.

All inputs and outputs can be routed and freely allocated. The name of each input and output channel can be modified. Each channel supports independent phase adjustment.

Input and output gain range: - 60-12dB.

All types of high and low cut and frequency divider can be selected: Butterworth, Linquerelli, Bessel slope..

The noise threshold, compressor start time and recovery time of the input channel are continuously adjustable. The inflection point 0-30 is continuously adjustable, the starting level 0-21dB is continuously adjustable, the starting time 0-2895ms is continuously adjustable, and the release time 0-2895ms is continuously adjustable,

The compression, limiting threshold, ratio, starting time and recovery time of the output channel are adjustable.

The input and output are delayed, and the maximum time of delay is 40ms.

Support any channel parameter copy function.



8-channel video matrix

The card inserted structure design adopts the design of 4 channels per card, which can flexibly configure the input and output signal types and the number of signal channels. It is convenient to expand and maintain, and the host can be compatible with different signals at the same time. The maximum supported resolution is 3840 * 2160/30HZ (optional), and the default maximum supported resolution is 1920 * 1200/60HZ.

HDMI/DVI/VGA/AV/SDI/optical fiber/network and other different input and output boards can be configured without interference. Signals can be converted to each other and transmitted simultaneously.

The digital signal adopts the point-to-point lossless transmission mode, which effectively ensures the high fidelity output of the image signal;

Telecommunication level core digital switching chip, with super anti-interference and all-weather working ability;

Bandwidth: 6.75Gbps Gain: 0dB

Bit clock jitter:<0.15Tbit

Bit rise time:<0.3Tbit (20% - 80%)

Bit falling time:<0.3Tbit (20% - 80%)

Maximum transmission delay: 5nS

Optional

Support 4-way HDMI input

Support 4-way VGA input

Support 4-way HDMI output

Support 4-channel DVI output

The host includes 4 boards above (optional)



8-way intelligent power management

1) 8-way power output, which can be controlled by time sequence or independently.

2) 30A high current output

3) The output adopts universal socket, which can meet the requirements of various specifications, and there is only a 30 A super current relay.

4) Switch supporting passive short circuit signal control equipment.

5) Support the cascade control of equipment network cables, and realize the cascade control of multiple equipment.

6) Provide a rich set of serial port instructions to facilitate users to realize various customized functions

7) Built in filter can effectively eliminate external power ripple interference.

1. Working voltage: AC220V/50~60Hz

2. Maximum load: 30A 6KW

3. Single load: 15A 3KW

4. Number of controllable routes: 8
