EN Series Speaker for Entertainment

  • EN12
  • EN12
EN12EN12

EN12

  • Product description: Badoosound PA speaker for club, bar, entertainment place
  • INQUIRY

In order to solve the acoustic problem for the use of loudspeaker indoor, the acoustics engineer of badoosound changed his years concept on professional speaker. Based on experience and innovation, the engineer developed successfully for the EN series loudspeaker with multi-function. It is an almighty and balanced speaker system which offers service for environment with multiple space.

EN series full range loudspeaker is with small volume and high power. It utilizes Mylar diaphragm high-frequency driver with special airflow colding method to extend the top of high frequency, and reduce the distortion to be lowest. It uses on-symmestric horn with coverage 50°-100°x 55°in  to control the sound under the range of requirement, reduces greatly the sound interference and  improves well the sound balance of front and back of the speaker, so to raise obviously the clarity of sound, to ensure consistent tone and flat frequency response.

Utilizes latest techniques of waterproof and dustproof for the cabinet, with solid construction design, to make sure that it can work stably under bad environment. The horn could be rotated in 90. The cabinet could be hoisted and installed in different direction, so it is very easy for installation.And there is also stand hole on the top of cabinet. Therefore, it is suitable for sound reinforcement for multi-functional hall or KTV room.


EN-10 is a two way passive full range which develops new style drivers with hi-tech materials (containing CFS Paper, magnet for flux, complex titanium) to guarantee the low distortion under big power condition. It adopts non-symmetrical compound horns to improve the average sound impact in the room effectively. The small enclosure, big power, high sound level and light package which is specially designed for broadcasting. Moreover, there are14 M8 threaded inserts make the installation easy and flexible.

Specification

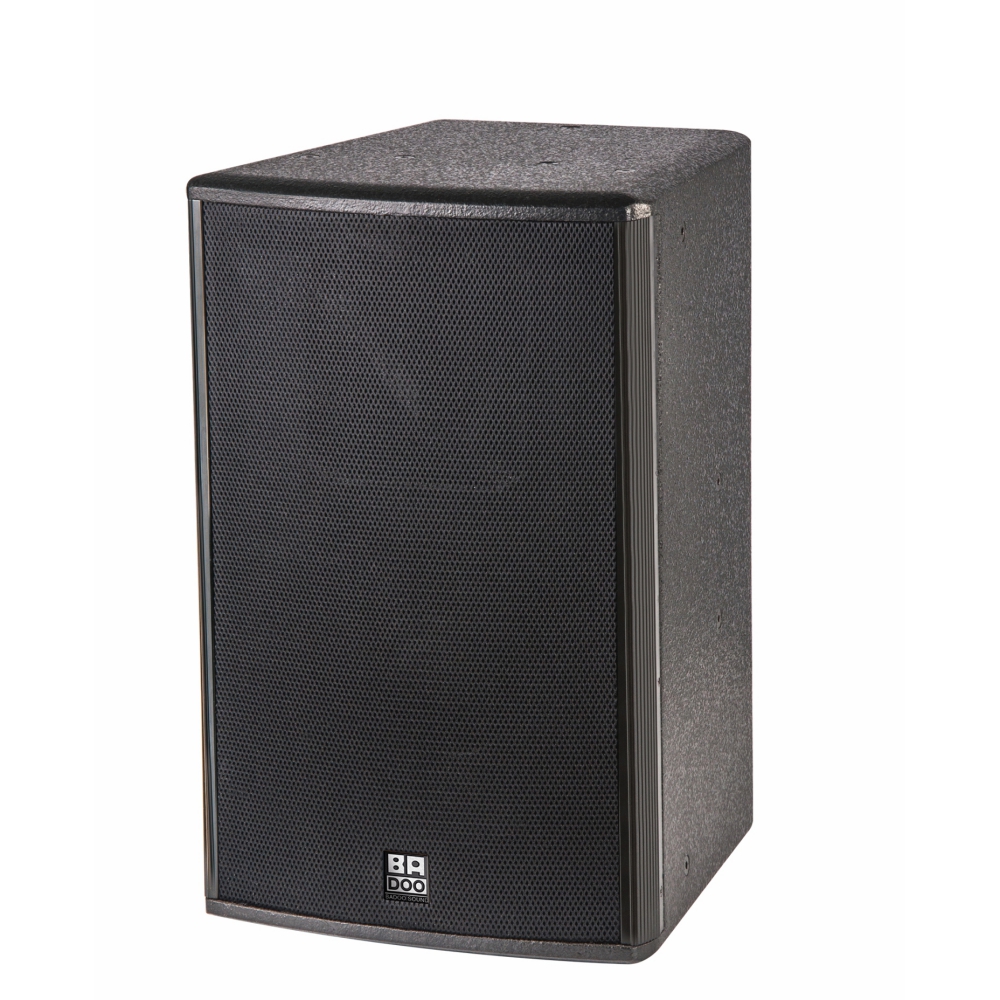

Model EN-12
Type 12"  two way,crossover in, passive, full range speaker
Drivers LF:12"speaker,  190mm magnet, 3" silvering aluminum voice coil
HF:1x1.75" Mylar diaphram driver , protector for over circuit/voltage
Frequency Range 55Hz-19KHz
Power handling capacity 400 Watts RMS
Sensitivity 97dB/1W/1m
Rated Impedance
SPL 122dB continnue, 128dB peak
Coverage(H x V) 50–100 x 50 degree
Construction  18mm Fiber board box; black paint, water/dust proof , complex asymmetric horn
Dimensions 580mm x 379mm x 333mm
