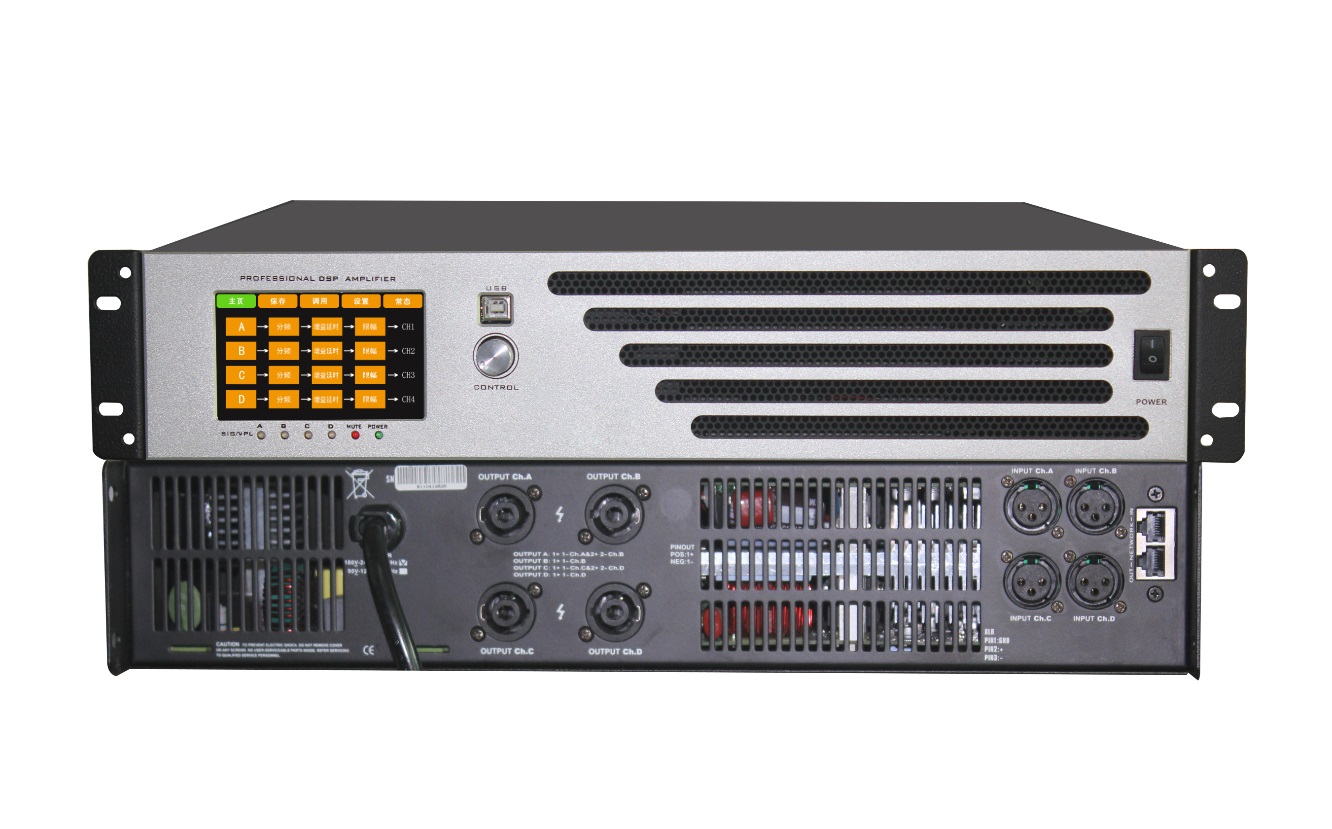

DSP Amplifier With Touch Screen

Max-4600

4.3inch Touch Screen
Built-in DSP
4x600 Watts/8Ω
4x1200 Watts/4Ω
Product description: DSP Amplifier With Touch Screen
INQUIRY

Features

With 4.3 inch touch-screen, built-in DSP processor

96kHz sampling rate, 32 bit DSP chip processing, 24 bit AD/DA conversion.

The output processing section consists of crossover, 8 parametric equalizer, high and low pass filter, gain, mute, compression / limiter, phase, delay, and continuous adjustment and other processing units.

The PEQ gain, bandwidth and frequency of all channels are continuously adjustable, and the types can be selected as follows: parameter equalization, low frame filtering, elevated filtering, low cut filtering and elevated filtering.

All input and output matrices can be allocated freely.

All input and output channels have independent phase adjustment function, and adjust the position to the opposite direction.

All types of high and low cut filters and x-overs can be selected: Butterworth, Linkwitz-Riley, Bessel, and the slope is -6dB/Oct to -48dB/Oct optional.

The output channel's compression / limiter threshold, ratio, startup time and recovery time are continuously adjustable.

All the delay modules of input and output channels have up to 1s delay time.

Parameter settings between arbitrary channels can be duplicated freely.

The front panel has an input and output level indicator, a USB control port, and a rear panel 485 control port.

20 users default, password protection function, make the device more secure.

Specification

8ΩStereo Power: 4X600W.

4ΩStereo Power: 4X1200W.

Input connector: XLR Female.

Input impedance: 20KΩbalance.

Input sensitivity: 0.77V 1.44V .

Common mode rejection ratio (CMRR): >80dB.
