Specification

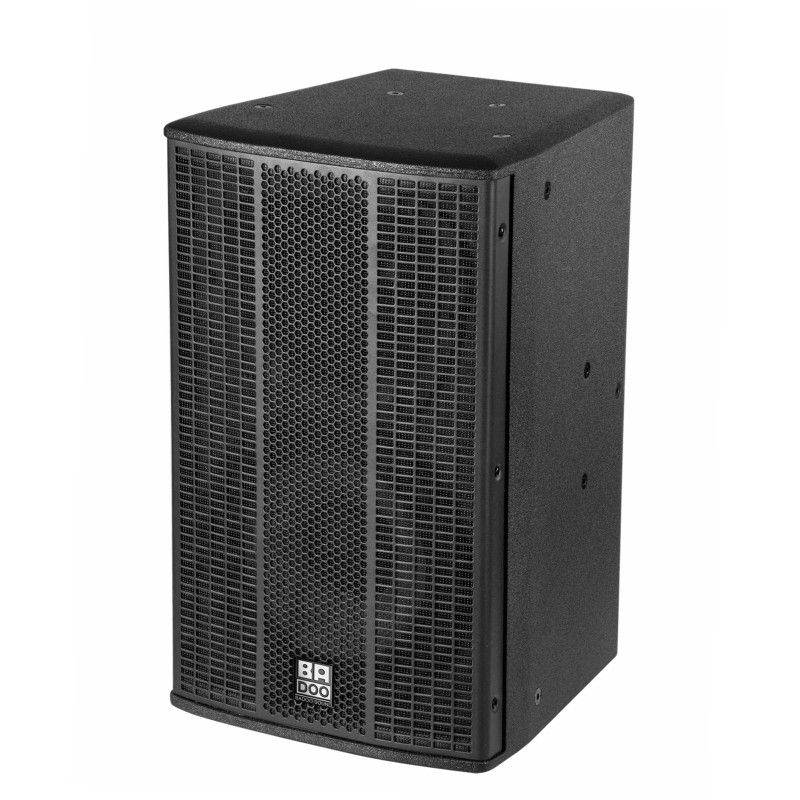

| Model | NC-15S |
| Type | 15inch 2-way full range speaker |
| Drivers | LF: 1x15" Italian woofer speaker,190mm maganet, 75mm voice coil |
| HF: 1x1.75" Italian driver, 44mm voice coil; horn | |
| Frequency Range | 47Hz-19KHz |
| Power handling capacity | 450W AES, 1800W Peak |
| Sensitivity | 97dB/1W/1m |
| Rated lmpedance | 8Ω |
| Coverage(H x V) | 90°x 60°non-symmetric horn |
| Construction | 13-layer,18mm birch plywood cabinet; |
| steel trill with water/dust proof acoustical spongia | |
| 20 x M8 fitting point, 38mm mounting hole ; hard black paint | |
| Dimensions | 431mm x 681mm x 463mm |
| Net Weight | 29Kg |
