Specification

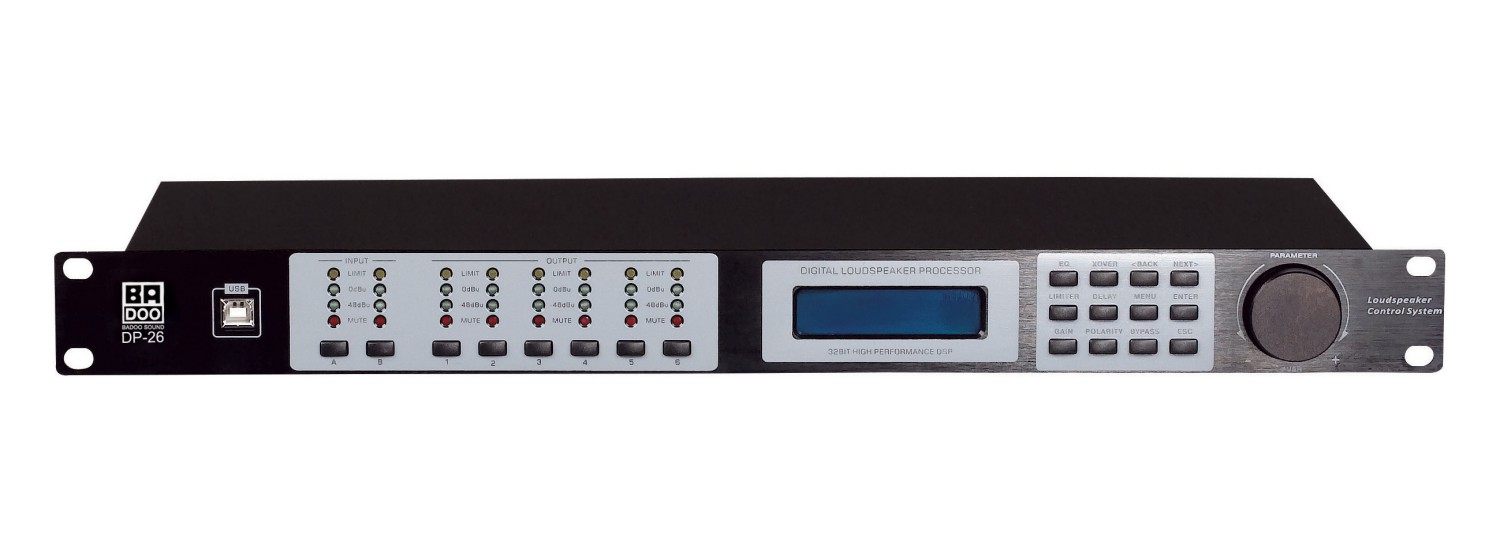

| Model | DPS-26 |
| Type | 2input 6 output digital audio processor |
| Inputs | 2xXLR3 electronically balanced |
| CMRR > 65dB (50Hz-10KHz) | |
| Outputs | 6xXLR3 electronically balanced Max level |
| + 20dB into 600 ohms load HIGH LOWPASS FILTERS | |
| Filiters | 1 of each per output |
| Frequency(HPF) | 10Hz-16KHz, 1/36 octave steps |
| Frequency(LPF) | 60Hz-22KHz, 1/36 octave steps |
| Response | Bessell/Butterworth 12/18/24dB per octave |
| Linkwitz-Riley 24dB per octave,PARAMETRIC EQUALISATION | |
| Filters | 5 sections per output |
| Filter gain | +15dB to -30dB in 0.1 dB steps |
| Centre frequency | 20Hz-20KHz, 1/36 octave steps (368 positions) |
| Filter Q/oct | 0.01-10 |
| Dimensions | 44x483x285mm(HxWxD) |
| Net Weight | 3.5Kg |
